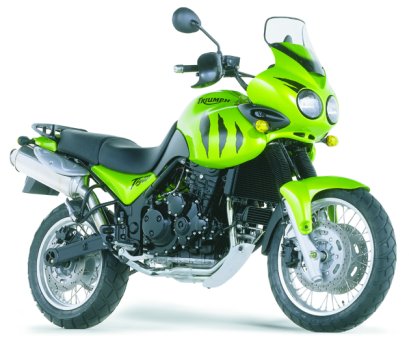

TRIUMPH TIGER

Uprated last year with the new generation 955cc engine, the Tiger remains a commanding proposition for both dominating urban traffic or devouring huge distance in total comfort. Designed for tarmac rather than an off-road environment, the Tiger’s long travel suspension can soak up the worst of the most demanding terrain.

With 104bhp on tap from the gutsy 955cc three-cylinder powerplant, the Tiger’s versatile chassis, long haul ergonomics (the seat can be adjusted to suit individual riders), captivating performance and rugged good looks keep it right at the top of the inter-continental trail bike tree. No other bike in the class produces as much power and few others can boast as striking looks as the Tiger.   The Tiger engine produces a peak torque figure of 97N.m (72ft.lb) at 6200rpm, allowing the rider to use this prodigious pulling power to make even the longest trips feel relaxed and unhurried.

As well as its robust chassis and powerful twin front disc brakes and single rear, the Tiger boasts penetrating night vision from its powerful twin headlights allowing a rider to maintain high average speeds night or day. And with a frame-mounted fairing keeping wind blast at bay and a vast 24-litre (5.3 gallon) tank to minimise fuel stops, the Tiger makes light of the longest distances. With optional custom-fit hard luggage, loading and unloading after a long trip is easier than ever.

Key Changes:

§         None

Colour Options:

§         Jet Black

§         Roulette Green

TRIUMPH ACCESSORIES (Click on images for full size pictures)

Not Illustrated

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer


TIGER_01.jpg (65597 bytes) Tiger_02.jpg (61086 bytes) TIGER_03.jpg (59244 bytes) TIGER_04.jpg (39721 bytes)
01TIGER_01.jpg (67081 bytes) 01TIGER_03.jpg (49217 bytes) 01TIGER_04.jpg (57057 bytes) 01TIGER_02.jpg (34919 bytes)

Click on images for
 full size pictures

TIGER SPECIFICATION

ENGINE





Type



Liquid-cooled, DOHC, in-line 3-cylinder

Capacity



955cc

Bore/Stroke



79 x 65mm

Compression Ratio



11.65:1

Fuel System



Multipoint sequential electronic fuel injection

Ignition



Digital - inductive type - via electronic engine management system

TRANSMISSION





Primary Drive



Gear

Final Drive



X ring chain

Clutch



Wet, multi-plate

Gearbox



6-speed

CYCLE PARTS





Frame



Tubular steel perimeter

Swingarm



Twin-sided, aluminium alloy with eccentric chain adjuster

Wheels

Front

Rear

36 spoke, 19 x 2.5in

40 spoke, 17 x 4.25in

Tyres

Front

Rear

110/80 H 19

150/70 H 17

Suspension

Front

Rear

43mm forks with triple rate springs

Monoshock with remotely adjustable pre-load and rebound damping

Brakes

Front

Rear

Twin 310mm discs, 2 piston calipers

Single 285mm disc, 2 piston caliper

DIMENSIONS





Length



2175mm (85.6in)

Width (handlebars)



860mm (33.8in)

0Height



1345mm (52.9in)

Seat Height



840 – 860mm (33.1 - 33.8in)

Wheelbase



1515mm (59.6in)

Rake / Trail



28º/ 92mm

Weight (Dry)



215kg (474lb)

Fuel Tank Capacity



24 litres (6.3 gal US)

PERFORMANCE



(Measured at crankshaft to DIN 70020)

Maximum Power



105PS (104bhp) at 9,500 rpm

Maximum Torque



92Nm (67ft.lbf) at 4,400 rpm

COLOURS



Jet Black, Roulette Green

WARRANTY



2 years, unlimited mileage

SERVICE INTERVALS



6000 miles or one year, whichever comes first
