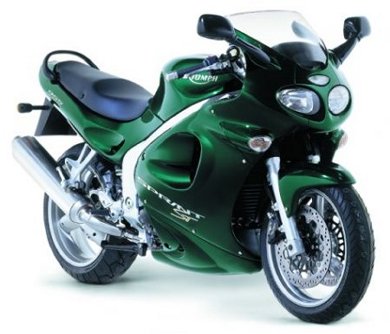

TRIUMPH SPRINT ST

The Sprint ST's combination of sporting performance and all-round ability has firmly established it as one of motorcycling's very best sports-tourers. Its pace and agility are matched by long-distance comfort and versatility, resulting in a bike that shines in every roadgoing situation.

Performance is provided by a 955cc three-cylinder motor that is tuned to give a maximum of 110PS (108bhp) with a broad spread of torque. The fuel-injected, liquid-cooled 12-valve motor produces peak torque at just over 6000rpm, making for effortless low-rev acceleration as well as a sharp turn of speed when revved harder.

Handling is exemplary, thanks partly to a twin-spar aluminium frame that is both light and supremely rigid. In conjunction with top-quality suspension and well-chosen geometry, this gives the ST light, easy steering yet also maintains exceptional high-speed stability even when the bike is heavily loaded.

As well as giving a stylish look, the Sprint's light and rigid single-sided swing-arm allows the pannier system to be tucked in tight to the rear wheel, minimising width. Triumph's purpose-built luggage system was designed to fit the ST from the outset, and thus could be made capacious

while also blending in with the bike's styling.

Ergonomic layout is sporty yet practical, providing a large degree of comfort and protection for rider and pillion while also facilitating high-speed control. The sports-tourer's braking ability is also of the highest order, thanks to twin 320mm front discs plus four-piston calipers that deliver huge power with excellent feel at the lever.

It all adds up to a bike that provides a remarkable blend of abilities, reinforcing Triumph's status as a manufacturer of high-class sports-touring machinery.

NEW FEATURES FOR 2001

• British Racing Green colour option

KEY FEATURES

Engine:

• Lightweight, liquid-cooled, fuel-injected 3-cylinder engine with DOHC, 12 valves, tuned for a huge spread of torque across the rev range.

• Lotus-designed cylinder head ports for optimum efficiency.
• Oil cooler for improved engine temperature control.
• Spin-on oil filter for easy maintenance.
• Magnesium cam, clutch, water pump and outlet covers for light weight.
• Lightweight polymer sprocket cover.
• Cable operated clutch for additional weight saving.
• Sagem MC1000 electronic engine management, with automatic cold start compensation and self-diagnostic capability.
• Reprogrammable injection mapping to match accessory performance silencer.
• Closed loop catalytic converter in some markets.
• Individual plug top coils for stronger sparks and reduced weight.
• Precise 6-speed transmission.
• Durable stainless steel exhaust headers with balancer designed to boost mid-range power.
• Circular section silencer, height-adjustable to suit accessory luggage fitment.

Chassis:

• Lightweight aluminium perimeter beam frame, using engine as a structural member.
• Single-sided aluminium alloy swing-arm.
• Showa rising rate monoshock rear suspension with remote hydraulic preload adjustment and adjustable rebound damping.
• Showa 43mm inverted telescopic forks with dual rate springs and preload adjustment.
• Low profile radial tyres mounted on lightweight Brembo 3-spoke cast aluminium wheels.
• 4-way adjustable front brake lever.
• Stainless steel braided front brake lines.
• Centre stand as standard.
• Cast aluminium grabrail as standard.
• Sleek full fairing with twin headlights and separate single parking light, designed to combine sporting style with touring ergonomics.
• Clear, stylish instrumentation including: digital speedometer, digital clock, odometer, trip meter, temperature and fuel gauges, warning lights for turn signals, engine management, main beam, oil pressure, fuel gauge and neutral gear position.
• Large capacity 21 litre (4.6 gal Imp, 5.6 gal US) polymer fuel tank.

COLOUR OPTIONS

• Tornado Red
• Sapphire Blue
• British Racing Green

TRIUMPH APPROVED ACCESSORIES (Click on thumbnails for full size picture)

• Performance Silencer

• 2x2 weave hi-temp carbon fibre wrap
• thermal blanket protection
• nitro-tec hardened bracket
• stainless steel external construction
• bespoke fuel injection mapping

• Two box colour co-ordinated panniers

• integrated stylish design
• a full face helmet can be accommodated in either pannier
• slim line fitting

• Colour co-ordinated Top Box

• 45 litre capacity
• holds two full face helmets
• direct mounting to rack

• Throwover Panniers

• high visibility reflective edging
• 1250 denier polyester construction
• integrated, quick release panel protectors (also available separately)
• 24 litres capacity expandable to 48 litres

• Tankbag

• 14 litre expandable to 18 litres
• removable map pocket
• integral water resistant cover
• shoulder strap
• separate harness

• Integrated Alarm

• L.E.D fitted as OE on bike
• two circuit immobilisation
• ‘fail-safe’ engine immobilisation
• ‘hot-wire’ detection circuit
• internal rechargeable battery
• current draw of less than 5 mA
• Thatcham MC1 approved

• Higher screen

• 3 mm ‘Lexan’ (Polycarbonate) screen
• designed for high mileage touring capabilities
• increased wind protection for rider & pillion

• Pannier Inner Bags

• Master cylinder Guard

• Solo Seat Cowl

• Cast Aluminium Rear Rack

• Paddock Stand

• Optimate Battery Charger Adapter
• allows remote charging of motorcycle battery

• Heated Grips
• two position heat setting
• no visible external wiring when fitted

• Rear Hugger
• Back Rest (to fit Top Box)
• Front Mudguard Extension Kit
• Rear Mudguard Extension Kit
• Carbon Fibre Tank Pad

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer

				Click on thumbnail for full size picture

SPECIFICATION

ENGINE
Type		Liquid-cooled, DOHC, in-line 3-cylinder
Capacity		955cc
Bore/Stroke		79 x 65mm
Compression Ratio		11.2:1
Fuel System		Multipoint sequential electronic fuel injection
Ignition		Digital -inductive type - via electronic engine management system
TRANSMISSION
Primary Drive		Gear
Final Drive		X ring chain
Clutch		Wet, multi-plate
Gearbox		6-speed
CYCLE PARTS
Frame		Aluminium beam perimeter
Swingarm		Single sided, aluminium alloy with eccentric chain adjuster
Wheels	Front Rear	Alloy 3 spoke, 17 x 3.5in Alloy 3 spoke, 17 x 6.0in
Tyres	Front Rear	120/70 ZR 17 180/55 ZR 17
Suspension	Front Rear	43mm forks with dual rate springs with adjustable preload Monoshock with adjustable preload and rebound damping
Brakes	Front Rear	Twin 320mm floating discs, 4 piston calipers Single 255mm disc, 2 piston caliper
DIMENSIONS
Length		2160mm (85.0in)
Width		735mm (28.9in)
Height		1220mm (48.0in)
Seat Height		800mm (31.5in)
Wheelbase		1470mm (57.9in)
Rake / Trail		25º / 92mm
Weight (Dry)		207kg (456lb)
Fuel Tank Capacity		21 litres (5.6 gal US)
PERFORMANCE
Maximum Power		110PS (108bhp) at 9,200 rpm
Maximum Torque		97Nm (72ft-lbf) at 6,200 rpm

Service intervals 6000 miles

Warranty 2 years unlimited mileage
