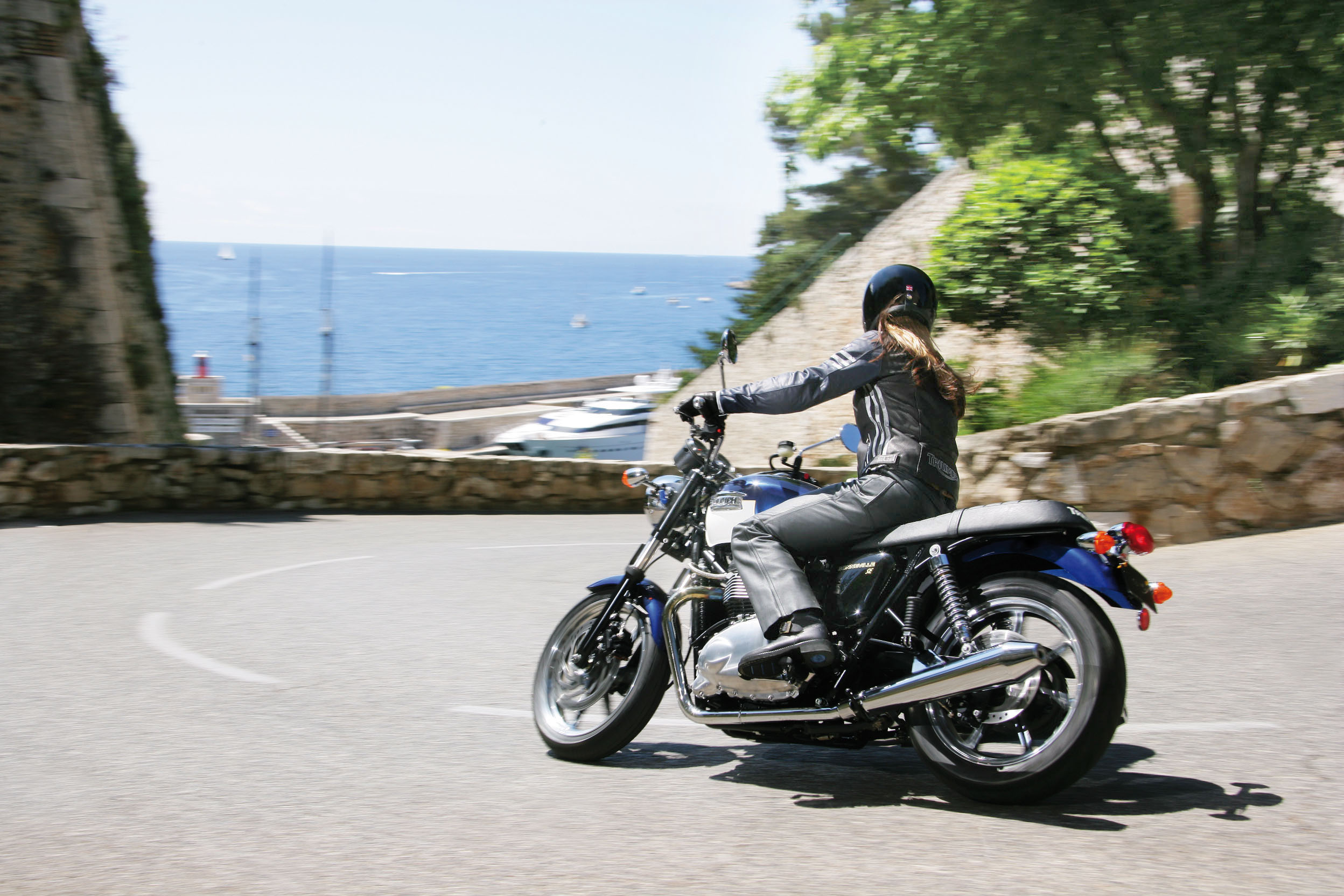

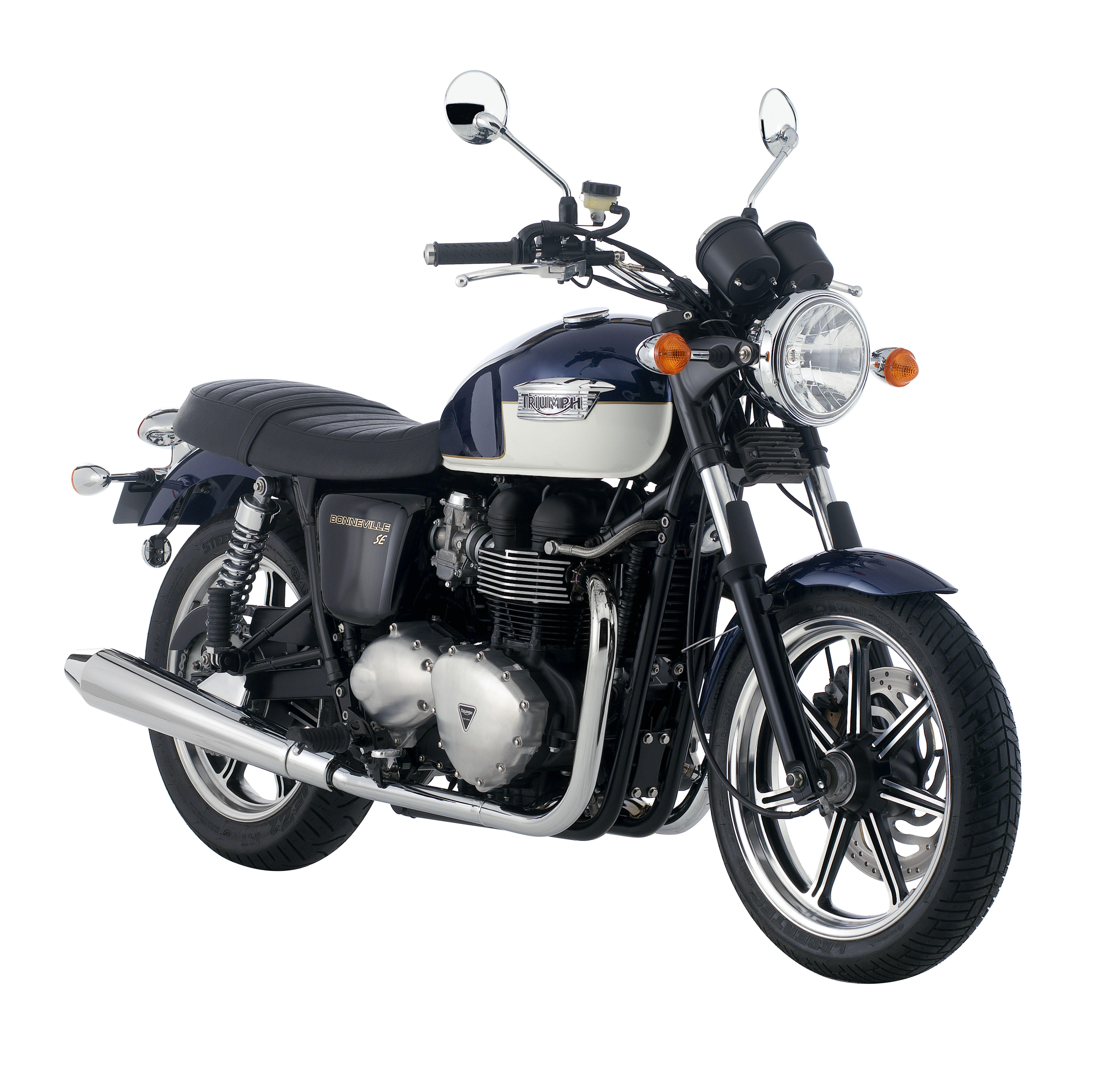

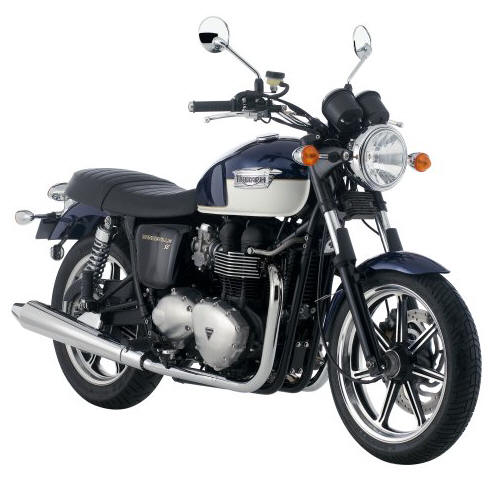

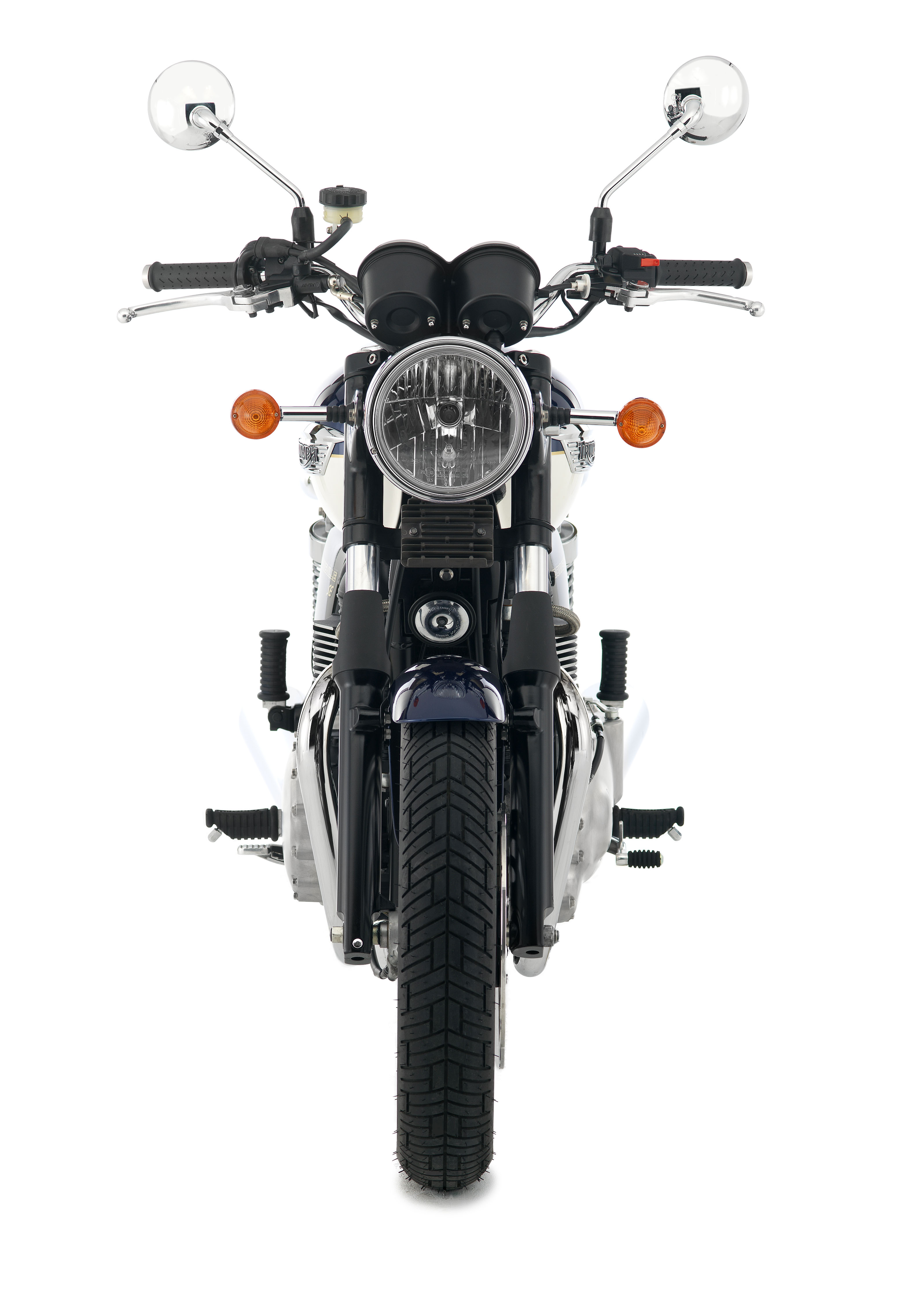

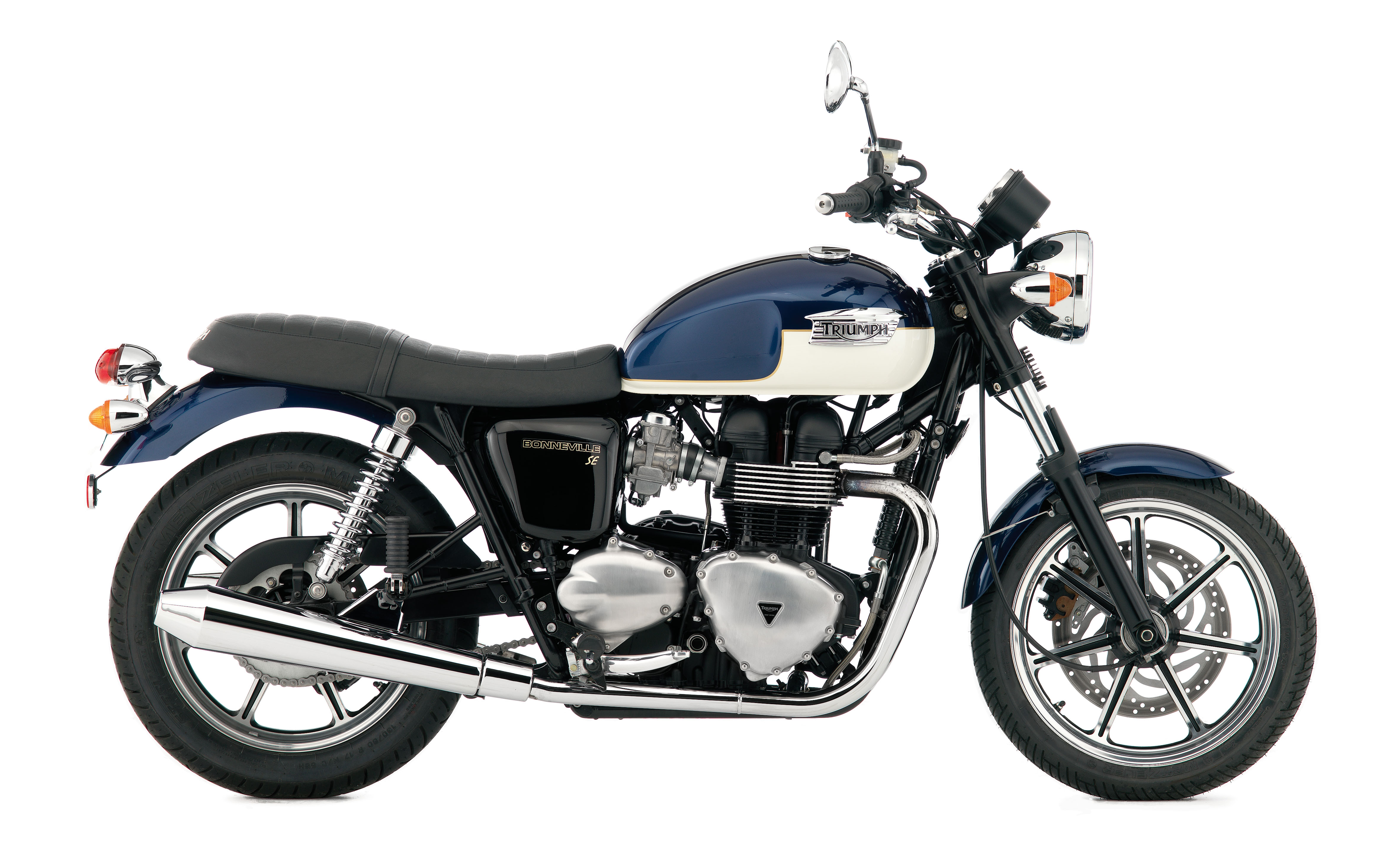

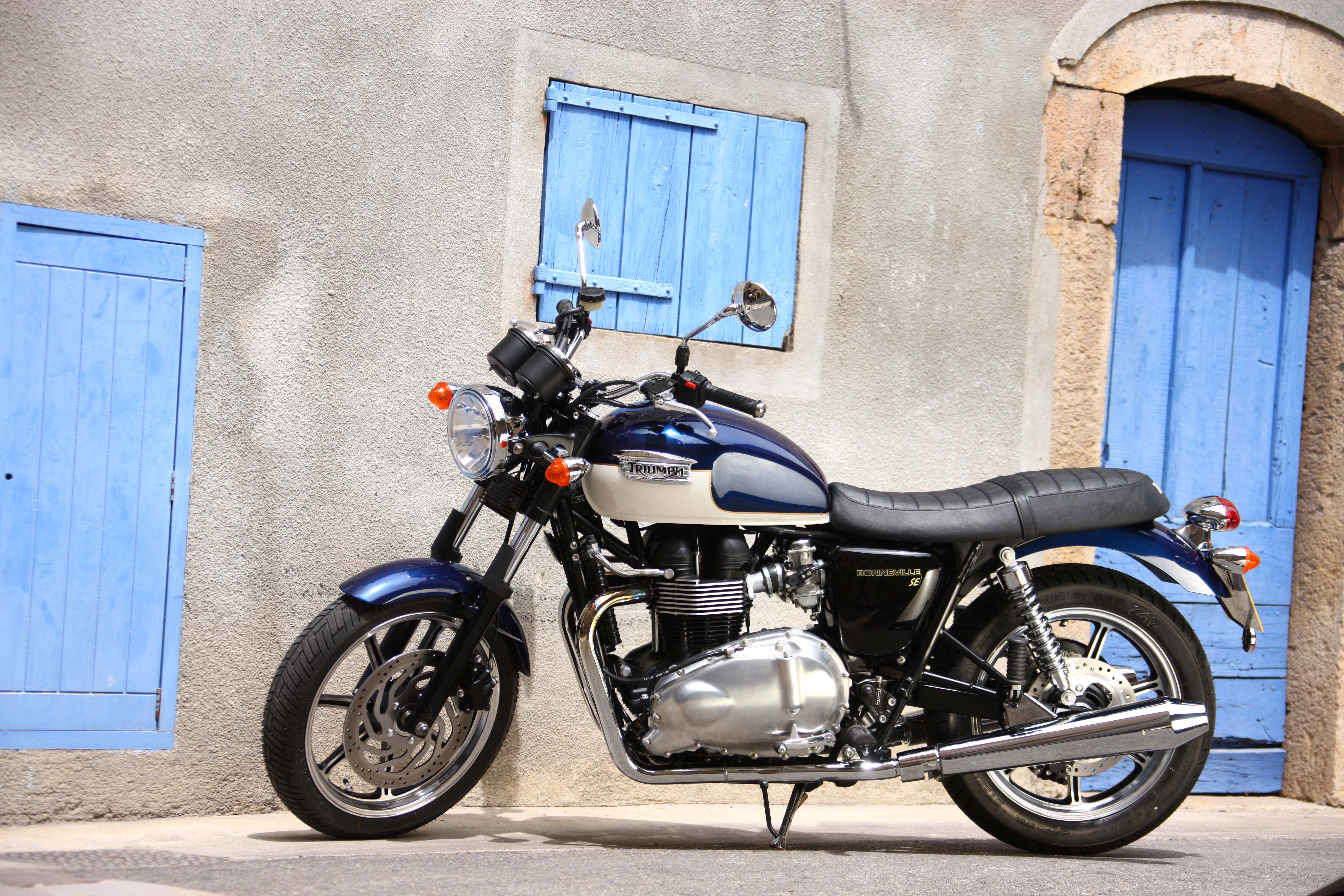

2009 Triumph Bonneville SE

BONNEVILLE SE

Just like the Bonneville, the Bonneville SE gets a distinctive 70’s look of its own, but with the addition of special

equipment to really set it apart. A matching speedometer and tachometer set, polished alloy engine

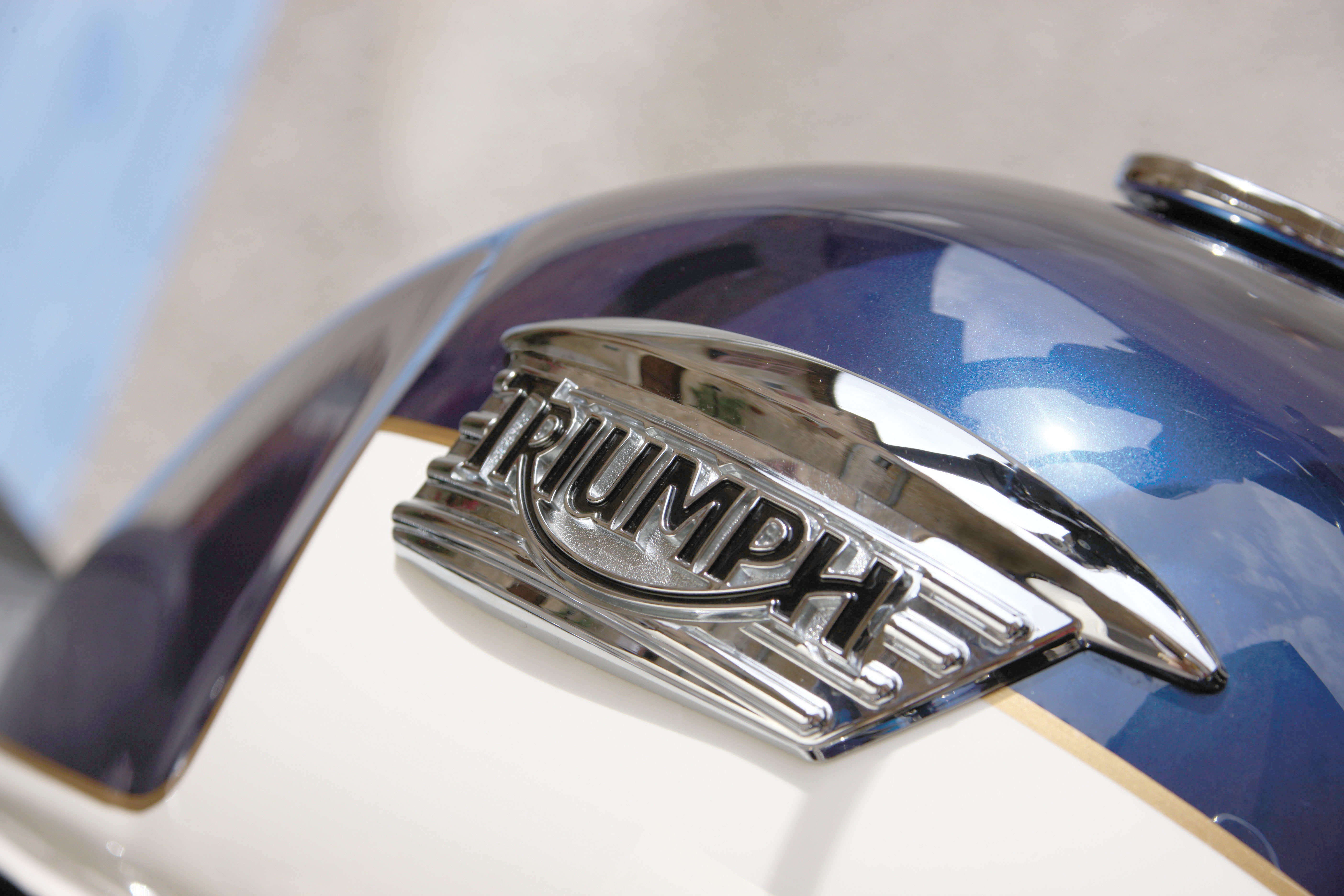

covers on the blacked out engine and a raised metal Triumph tank badge are added to the Bonneville’s distinctive styling.

The new cast wheels, upswept pipes, ‘shortie’ fenders and new lower and narrower seat with white Triumph logo

are shared with the new Bonneville. There’s even a twin color paint scheme available to go with that classic twin sound.

The result is pure Bonneville with a real retro sporty look, just more of it.

Colour Options:

Aluminium Silver

Fusion White

Claret

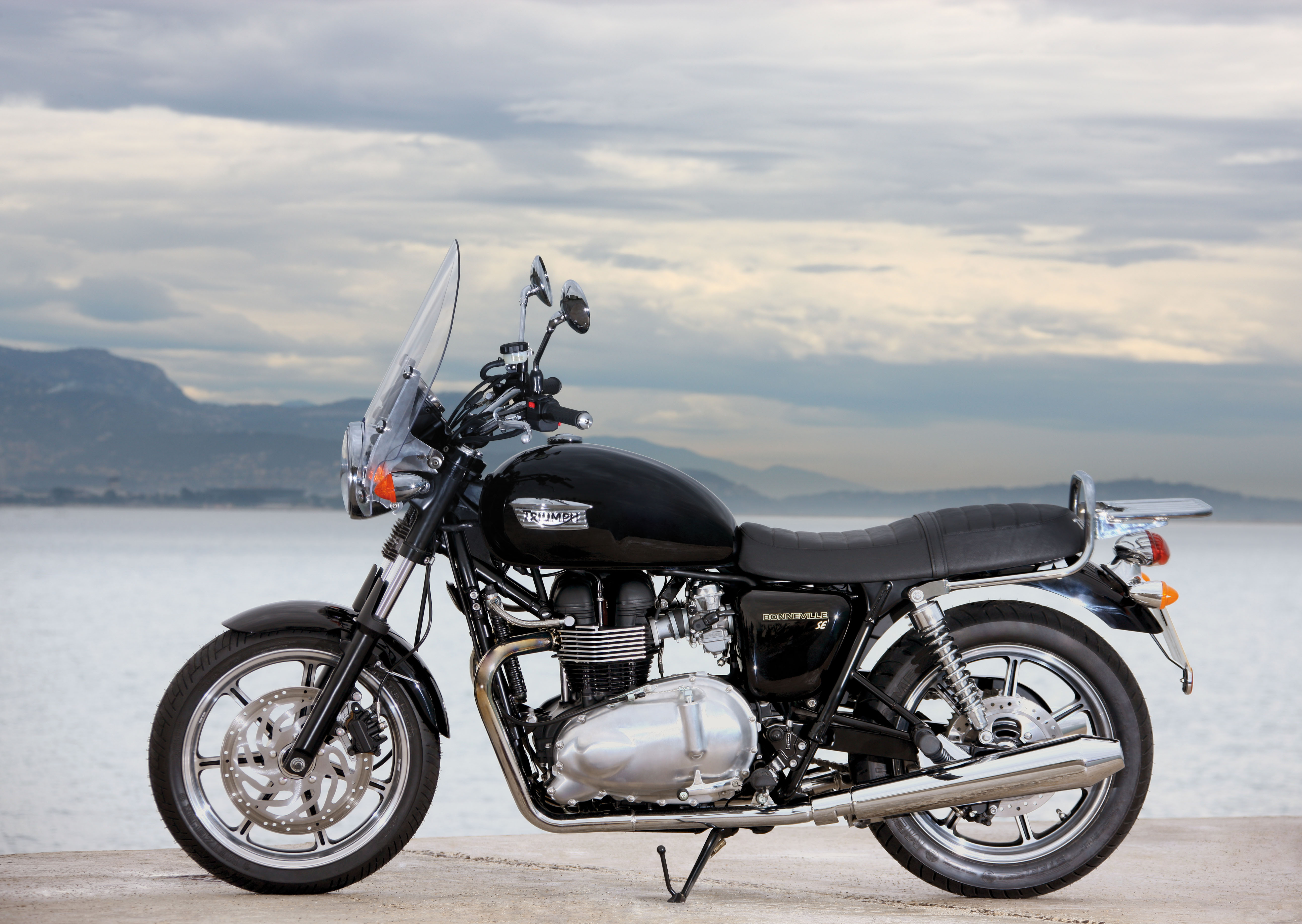

Jet Black with black engine finish

Summer Screen

Roadster Screen

Fly Screen - Colour Coordinated

King And Queen Seat

Single Seat

Sissy Bar High - Chrome

Sissy Bar Low - Chrome

Grab Rail - Chrome

Silencers

Leather Panniers, Teardrop

Saddlebag, Classic

Fabric Panniers

Tank Bag

Fuel Filler Caps

Engine Cover Kit - Brushed

Engine Cover Kit - Chrome

Engine Dresser Bars - Chrome

Cam Cover - Chrome

Brake Master Cylinder Cap - Chrome

Front Mudguard - Chrome

Chain Guard - Chrome

Side Panel - Chrome

Headlight Bracket - Chrome

Lever Kit - Chrome

Brake Lever Kit, Adjustable

Speedo Fascia - Chrome

Side Stand - Chrome

Tacho Conversion Kit

Lifter Arm Cover - Chrome

Knee Pads

Tank Badges

Centre Stand

Auxiliary Socket

Service Manual

Alarm Immobiliser

Restrictor Kit 34ps

Dust Cover

All Weather Cover

Polycarbonate Tank Badge Kit

Cast Tank Badge Kit

Polycarbonate Sprocket Cover Kit

Coloured Cam Cover Kit

Tank Pad Kit

Headlamp Cover Kit

Drilled Sprocket Cover

Seat Cowl Kit

Contemporary Seats

Single Seat

Single Seat and Rack Kit

Coloured Side Panels Kit

Short Rear Mudguard Kit

Short Rear Mudguard Kit - US Market

Short Front Mudguard Kit

Leather City Bag -

Magnetic Tank Bag

Tank Cover Kit

Union Flag Badge

Sixty8 Badge

Fork Gaiters

Shop our online store TRIUMPHeSTORE.com

Hermy's is a Triumph Triple Connection Stocking Dealer

Bonneville Specification:
ENGINE AND TRANSMISSION:

Type: Air-cooled, DOHC, parallel-twin, 360º firing interval

Capacity: 865cc

Bore/Stroke: 90 x 68mm

Fuel System: Multipoint sequential electronic fuel injection with SAI

Final Drive: X ring chain

Clutch: Wet, multi-plate

Gearbox: 5-speed

CHASSIS, RUNNING GEAR AND DISPLAYS:

Frame: Tubular steel cradle

Swingarm: Twin-sided, tubular steel

Wheels:

Front Aluminium cast aluminium alloy, 7- spoke, 17 x 3.0 inch

Rear: Aluminium cast aluminium alloy, 7-spoke, 17 x 3.5 inch

Tires:

Front 110/70 R17

Rear: 130/80 R17

Suspension:

Front Kayaba 41mm forks, 120mm travel

Rear: Kayaba chromed spring twin shocks with adjustable preload,

100mm rear wheel travel

Brakes:

Front Single 310mm disc, Nissin 2-piston floating caliper

Rear Single 255mm disc, Nissin 2-piston floating caliper

Instrument display/functions: Analogue speedometer and tachometer with odometer

and trip information

DIMENSIONS AND CAPACITIES:

Length: 2144mm (84.3in)

Width: (Handlebars) 748mm (29.4in)

Height: 1100mm (43.3in)

Seat Height: 751mm (29.5in)

Wheelbase: 1454mm (57.2in)

Rake/Trail: 27º/106mm

Dry Weight: 200kg (440lbs)

Fuel Tank Capacity: 16.0 liters (3.5 gal / 4.2 US gals)

PERFORMANCE: (MEASURED AT CRANKSHAFT TO DIN 70020)

Maximum Power: 68PS / 67bhp / 50kW @ 7500rpm

Maximum Torque: 69Nm / 51ft.lbf @ 5800rpm

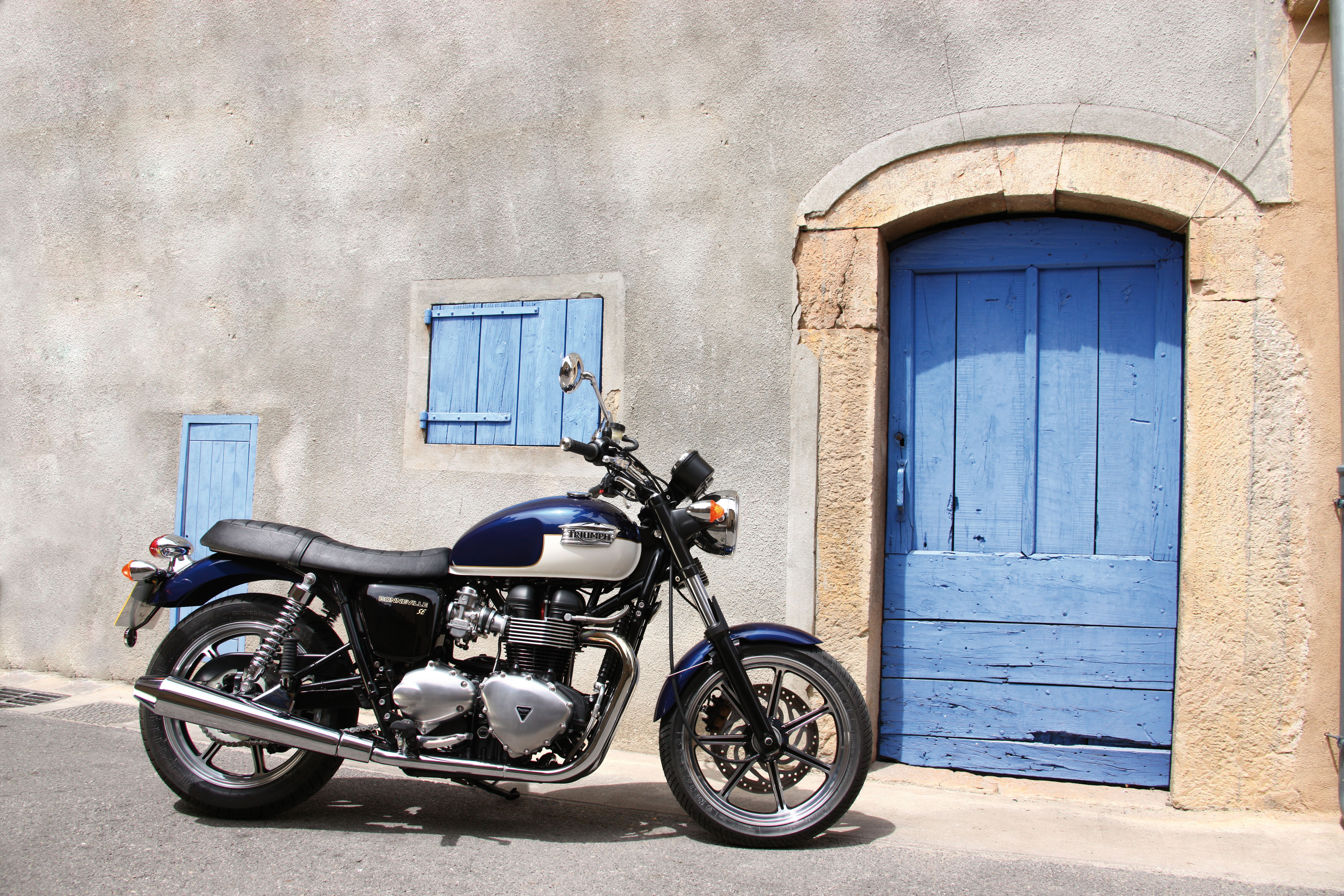

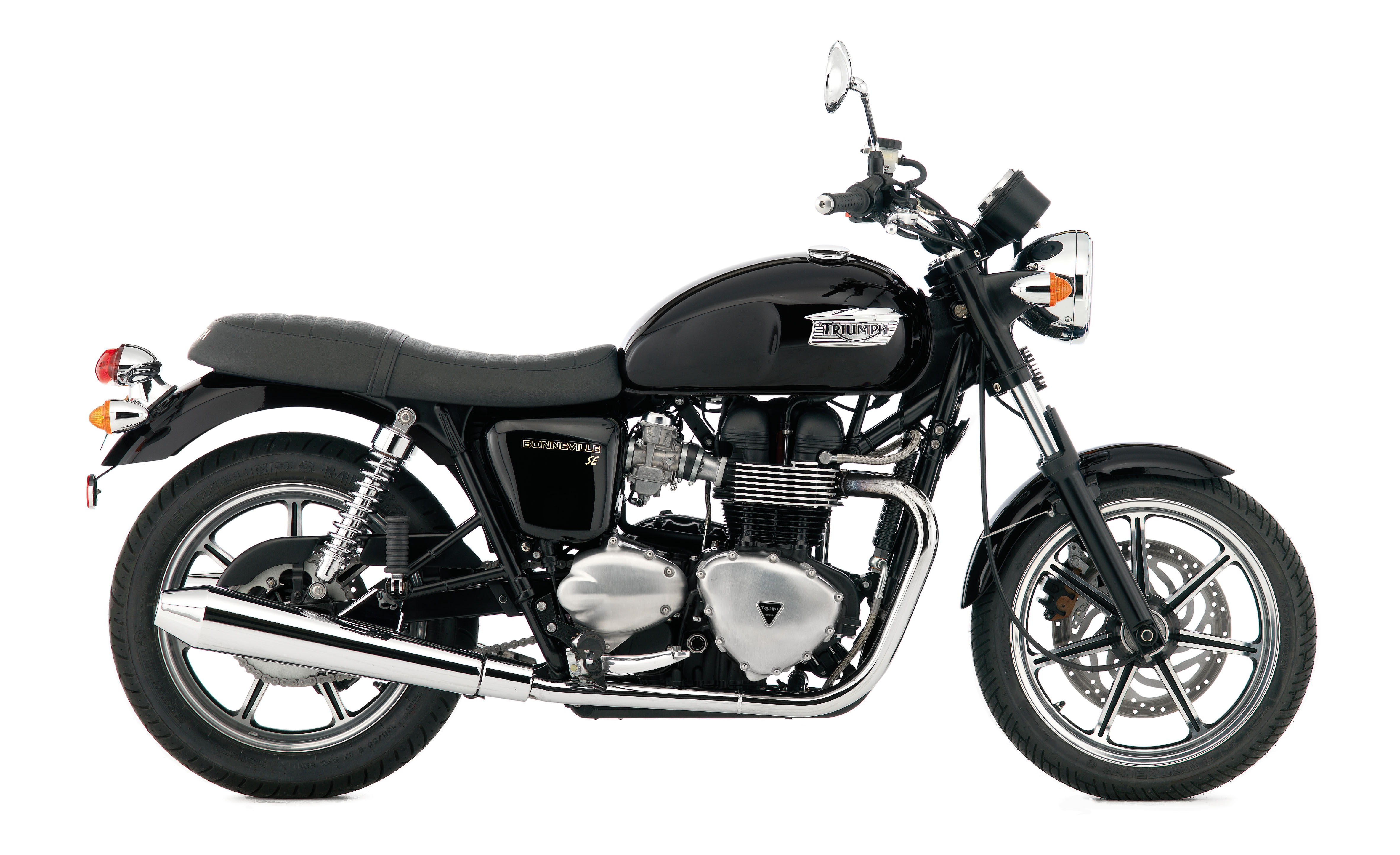

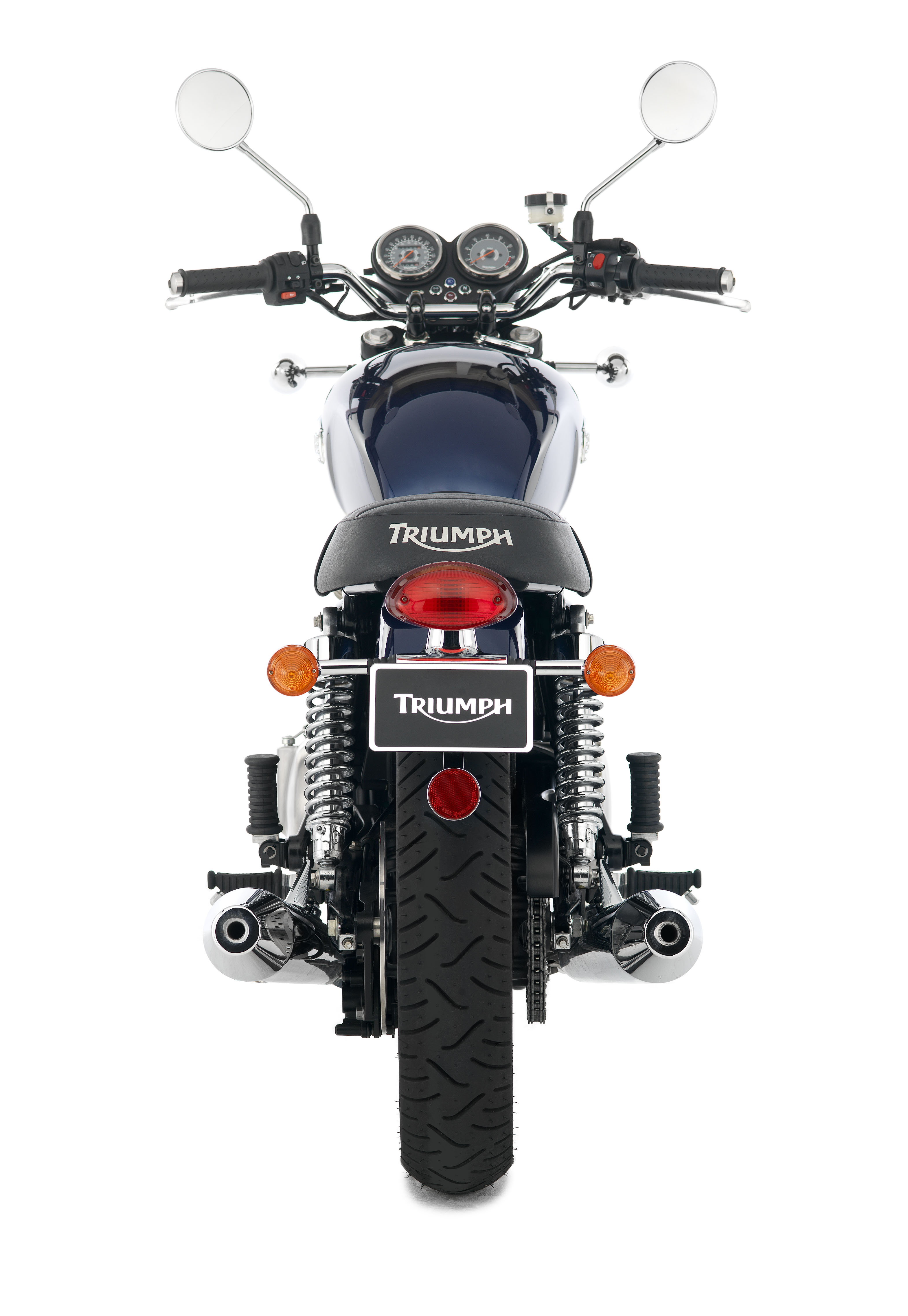

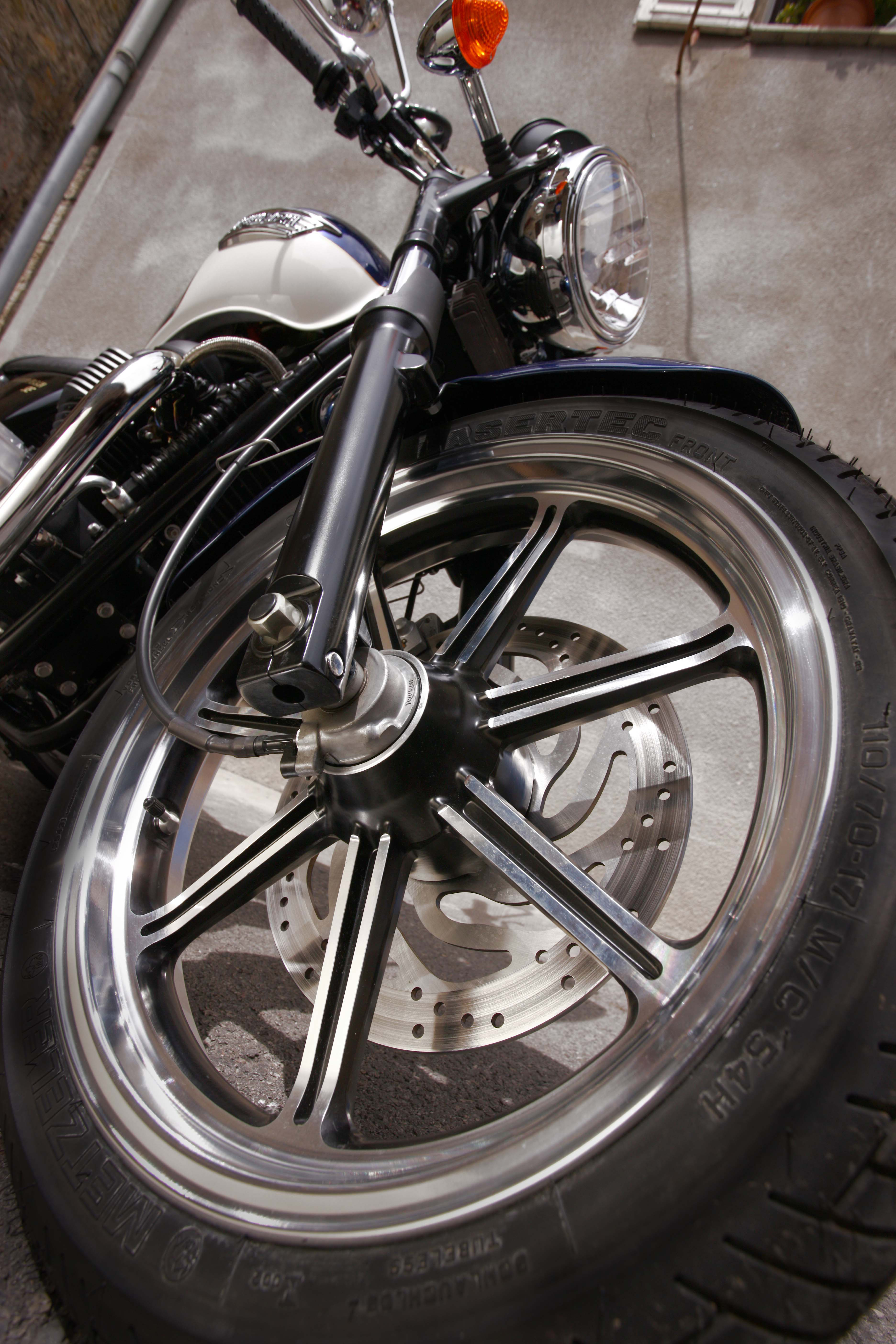

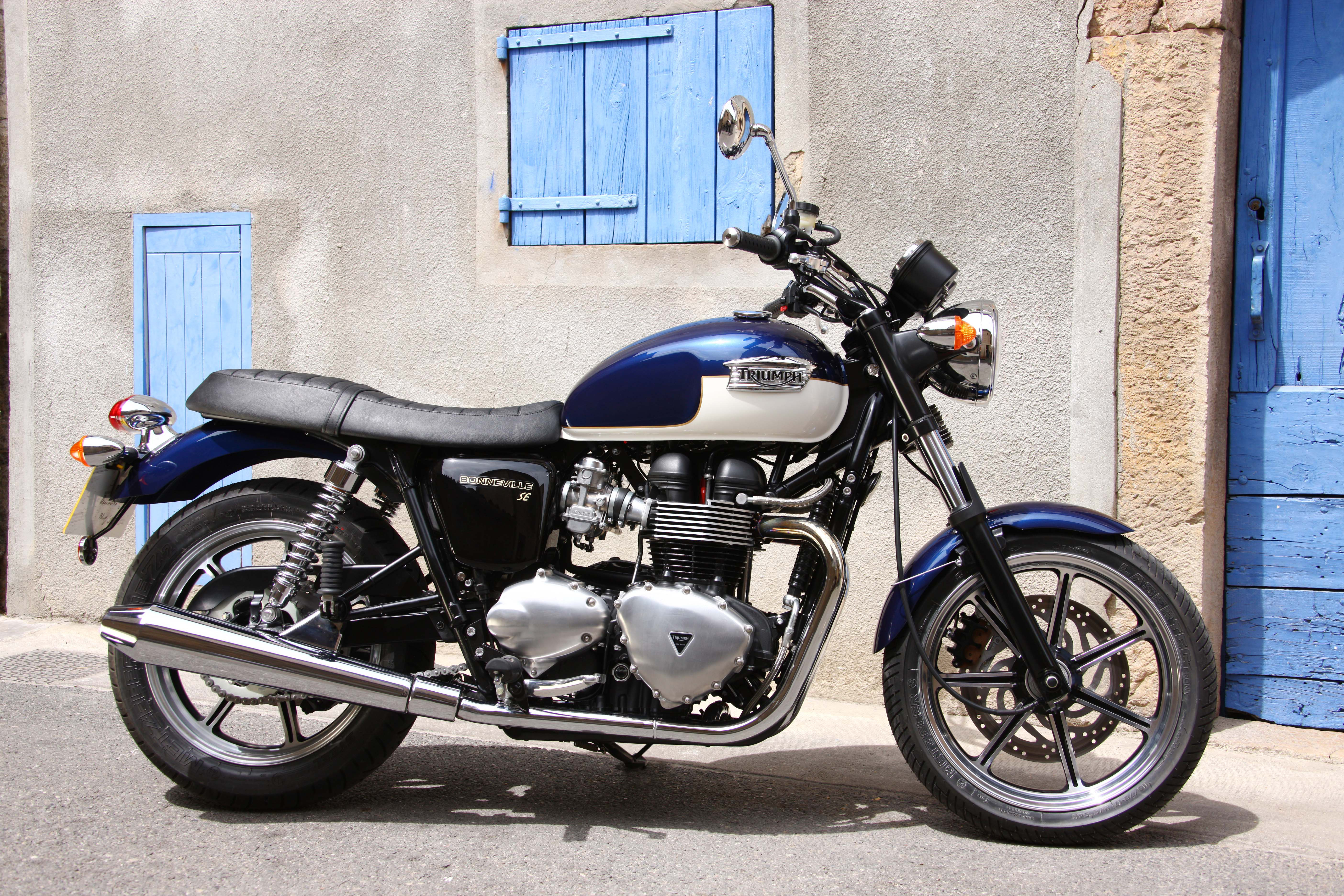

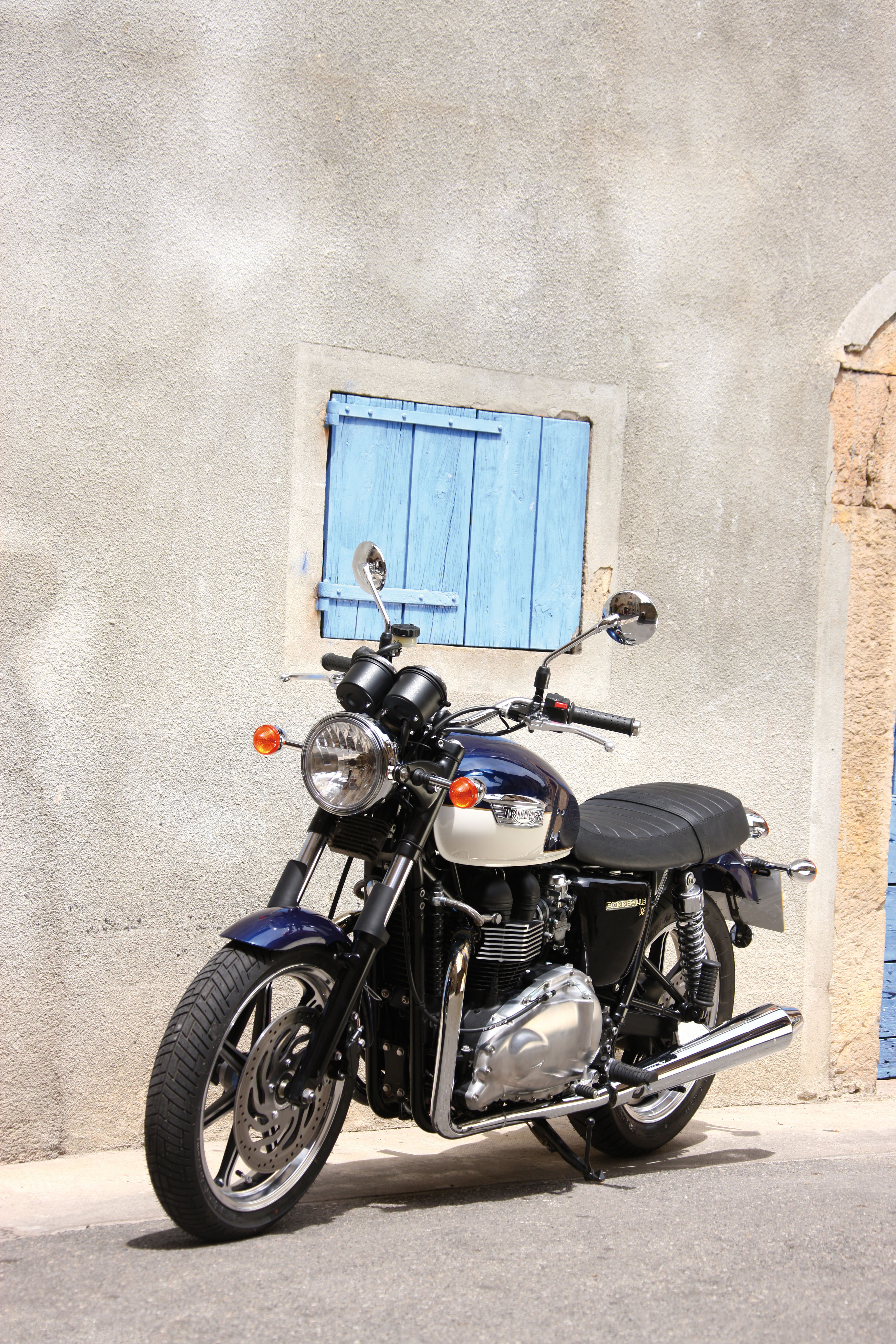

	Click on thumbnail for full size picture
