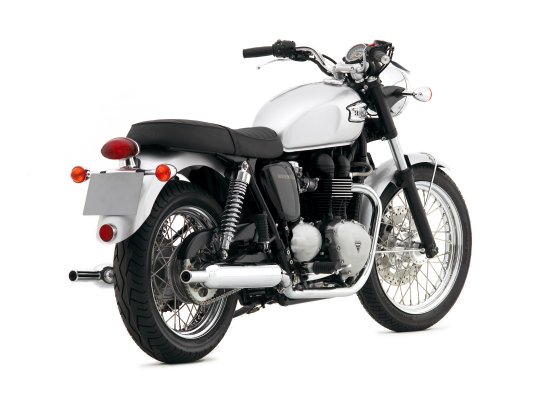

BONNEVILLE

Changes for 2007:

·         Increased engine capacity from 790cc to 865cc

·         Black engine with polished and lacquered covers

·         Adjustable clutch lever



AUTHENTICITY WITH MODERNITY

A true roadster in every sense of the word, the Bonneville matches classic British style to 21st century technology.  This pairing of authenticity with modernity has led the Bonneville to become an icon in its own right; world famous (and quintessentially British) designer Paul Smith has personally designed a signature series of Bonnies, with accessories to match.  Triumph’s own sixty8 range, which includes hand crafted laptop bags, iPod holders and a series of unique custom-painted tank covers, further enhances the Bonneville’s status not only as a motorcycle but also as a cool style statement.

Taking many cues from Triumph’s past – the original bike was first manufactured in 1959 – the Bonneville has found real relevance today thanks to riders looking for a simple, honest and useful machine that can be enjoyed to the full in standard form, or personalised and tailored to suit each individual rider’s needs.

It’s an easy-to-manage motorcycle, thanks to a low seat height of 775mm – 30.5 inches – and similarly low centre of gravity.  The tubular steel double cradle frame and box-section swingarm are immensely strong while the relaxed steering geometry provides composure at speed as well as ensuring the Bonnie needs only light input at the handlebars.  All riders – from those with little experience to those with lots – appreciate the Bonneville’s excellent open road manners and also its agility in jammed city streets.

The Bonneville’s air-cooled, parallel twin-cylinder engine offers a simple, timeless look with modern engineering techniques and, for 2007, gets a 75cc increase in cubic capacity to 865cc, for improved midrange torque.  Both of the engine’s pistons rise and fall together – via a 360° crankshaft firing interval – so the classic feel and character of a British twin-cylinder engine is retained, while twin balancer shafts provide modern-day civility and refinement.

Ninety percent of peak torque – a very healthy 71Nm (52ft.lbf) at 6000rpm – is maintained from around 2500rpm through to the redline providing smooth and effortless acceleration in any of the five gears.  Twin electrically heated 36mm carburettors feed the engine and are fitted with throttle position sensors.  A pair of ‘peashooter’ style silencers deal with exhaust gases and have a very traditional look, as does the triangular engine cover and left-hand side clutch casing.

The Bonneville’s road holding, handling and stopping ability is crisp, composed and confidence inspiring.  The braking set-up of single front 310mm disc and 255mm rear, both worked on by powerful twin-piston calipers offers sensitivity and control.  Three paint options, Jet Black, Goodwood Green, and Aluminium Silver are available.  The extra option of the black engine finish with the Jet Black paint scheme, the ‘Bonneville Black’, adds a subtle alternative.

The Bonneville’s a stylish way to cover the urban landscape and equally at home blatting down a leafy country lane on a Sunday ride out.  It has a lineage few models can match plus a tangible credibility, multiplied by interest from designers such as Paul Smith.  All of which makes the Bonneville as relevant today as it’s always been, perhaps even more so.

Colour Options:

Goodwood Green

Aluminium Silver



Bonneville Specification:

ENGINE

Type



Air-cooled, DOHC, parallel-twin, 360º firing interval

Capacity



865cc

Bore/Stroke



90 x 68mm

Compression Ratio



9.2:1

Fuel System



Twin carburettors with throttle position sensor and electric carburettor heaters

Ignition



Digital–inductive type

TRANSMISSION

Primary Drive



Gear

Final Drive



X ring chain

Clutch



Wet, multi-plate

Gearbox



5-speed

CYCLE PARTS

Frame



Tubular steel cradle

Swingarm



Twin-sided, tubular steel

Wheels

Front

36-spoke 19 x 2.5in



Rear

40-spoke 17 x 3.5in

Tyres

Front

100/90 19



Rear

130/80 17

Suspension

Front

41mm forks



Rear

Chromed spring twin shocks with adjustable preload

Brakes

Front

Single 310mm disc, 2 piston calipers



Rear

Single 255mm disc, 2 piston calipers

DIMENSIONS

Length



2230mm (87.8in)

Width (Handlebars)



840mm (33.1in)

Height



1100mm (43.3in)

Seat Height



775mm (30.5in)

Wheelbase



1500mm (59.1in)

Rake/Trail



28º/110mm

Weight (Dry)



205kg (451lbs)

Fuel Tank Capacity



16.6 litres (4.4 gal US)

PERFORMANCE

(MEASURED AT CRANKSHAFT TO DIN 70020)

Maximum Power



67PS (66bhp) at 7200rpm

Maximum Torque



71Nm (52ft.lbf) at 6000rpm



Two Year Unlimited Mileage Warranty

Riders Association Triumph Membership Included

Visit our local RAT Pack Web Site: RoyalRATPack.Com






Triumph Accessories

Silencers

Summer Screen

Roadster Screen

Fly Screen

Leather Panniers

Fabric Panniers

Tank Bag

Grab Rail - Chrome

Sissy Bar High - Chrome

Sissy Bar Low - Chrome

King & Queen Seat

Single Seat

Engine Cover Kit - Polished

Engine Cover Kit - Chrome

Locking Petrol Cap

Master Cylinder Cover - Chrome

Front Mudguard - Chrome

Chain Guard - Chrome

Side Panel - Chrome

Headlight Brackets - Chrome

Levers - Chrome

Brake Lever Kit - Adjustable

Side Stand - Chrome

Cam Cover - Chrome

Engine Dresser Bars - Chrome

Tacho Conversion

Speedo Facia - Chrome

Knee Pads

Lifter Arm Cover - Chrome

Tank Badge - Eyebrow

Tank Badge - Bonneville

Tank Badge - Classic

Tank Badge - Heritage

Alarm Immobiliser

All Weather Cover

Auxilliary Power Socket

Chain & Sprocket Kit

Center Stand

Dust Cover

Service Manual

Restrictor Kit



Sixty8 Accessories:

Tank Cover Kit - Sixty8

Tank Cover Kit - Union Mono

Tank Cover Kit - Union Jack

Tank Cover Kit - Tartan

Tank Cover Kit - Flowers

Tank Cover Kit - Ivory

Tank Cover Kit - Red

Tank Cover Kit - Yellow

Tank Cover Kit - Silver

Cast Tank Badge Kit - Black

Cast Tank Badge Kit - Red

Cast Tank Badge Kit - Yellow

Cast Tank Badge Kit - Ivory

Polycarbonate Tank Badge Kit - Red

Polycarbonate Tank Badge Kit - Yellow

Polycarbonate Tank Badge Kit - Ivory

Polycarbonate Tank Badge Kit - Black

Polycarbonate Tank Badge Kit - Silver

Headlamp Cover Kit - Red

Headlamp Cover Kit - Yellow

Headlamp Cover Kit - Ivory

Sixty8 Badge

Seat Cowl Kit - Red

Seat Cowl Kit - Yellow

Seat Cowl Kit - Ivory

Seat Cowl Kit - Silver

Seat Cowl Kit - Black

Coloured Side Panels Kit - Red

Coloured Side Panels Kit - Yellow

Coloured Side Panels Kit - Ivory

Coloured Side Panels Kit - Silver

Coloured Side Panels Kit - Chrome

Fork Gaitors

Coloured Cam Cover Kit - Red

Coloured Cam Cover Kit - Yellow

Coloured Cam Cover Kit - Ivory

Coloured Cam Cover Kit - Chrome

Coloured Cam Cover Kit - Black

Coloured Cam Cover Kit - Silver

Polycarbonate Sprocket Cover Kit

Drilled Sprocket Cover - Chrome

Drilled Sprocket Cover - Black

Tank Pad Kit - Red

Tank Pad Kit - Yellow

Tank Pad Kit - Ivory

Union Flag Badge

Short Front Mudguard Kit - Black

Short Front Mudguard Kit - Silver

Short Rear Mudguard Kit - Black

Short Rear Mudguard Kit - Silver

Magnetic Tank Bag - Black

Magnetic Tank Bag - Brown

Leather City Bag - Black Pair

Leather City Bag - Black LH

Leather City Bag - Black RH

Leather City Bag - Brown Pair

Leather City Bag - Brown LH

Leather City Bag - Brown RH

Single Seats - Black

Single Seat and Rack Kit

Contemporary Seat - Black Grey

Contemporary Seat - Brown

Contemporary Seat - Black
