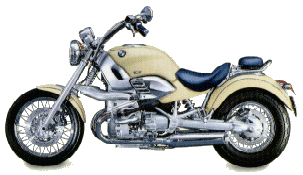

1998 BMW R 1200 C / R 1200 CA

Colors: Canyon Red Metallic (with silver pin striping), Midnight Black (with white pin striping), Ivory (with blue pin striping).

Standard Equipment: Integrated ignition switch and lock (handlebars may be locked to the left or right), single-key system, hand brake lever adjustable in 4 positions, clutch lever adjustable in 4 positions, side stand with no-start function (engine may be operated in neutral with the side stand out. Whenever the motorcycle is shifted into first gear, with the side stand out, the engine will be shut off), complete exhaust system made of stainless steel and chrome-plated, three-way catalytic converter with oxygen sensor, two-piece seat (pillion seat may be folded up as a backrest for the rider), leather seat and handlebar grips, high one-piece handlebars, oil cooler integrated in the front frame section, Telelever in front, Monolever in the rear, hazard warning flasher.

Optional Accessory's Suggestions: Heated handlebar grips, ABS, low handlebars, pillion-rider comfort saddle, saddlebags, saddlebag carrier, engine protection bars, power socket with trim bezel, inner bags.

R 1200 C - Mfr.'s Suggested Retail Price: *$12,990
R 1200 CA - Mfr.'s Suggested Retail Price: *$14,290

*Actual Price Determined by Dealer
*Price excludes taxes, options destination and handling charges

Engine
Type	2-cylinder 4-stroke flat engine
Bore x stroke	3.97 x 2.87"
Displacement	1,170 cc
Horsepower	61 hp @ 5000 rpm
Torque	72 lb.-ft. @ 3000 rpm
Compression ratio	10.0:1
Valve gear	HC, chain-driven
Valves	4 valves per cylinder
Engine oil capacity	4 quarts of SF, SG motor oil, also w/CC or CD
Engine oil filter	spin-on Micronic filter cartridge
Carburetion	fuel injection and electronic ignition MA 2.4
Ignition	controlled by Bosch Motronic
Fuel demand	unleaded, premium, (95 RON)
Fuel tank	steel tank with enclosed fuel pump & filter
Catalytic converter	three-way catalytic converter with oxygen sensor and metal support
Fuel capacity	4.5 U.S. gallons including 1 gal. reserve
Air Filter	paper-type element
Charging system	14 V, 50 Amp Alternator (700 W)
Battery	BMW Mareg, 19.5 Amp/h low maintenance
Cooling system	combined air/oil cooled
Drivetrain
Primary drive	helical-cut gears with tensioner
Transmission	5-speeds, constant mesh
Clutch	dry, single plate with diaphram spring
Gear ratios	1st gear: 2,045 2nd gear: 1,600 3rd gear: 1,267 4th gear: 1,038 5th gear: 0,800
Drive system	enclosed driveshaft with two universal joints and integral torsional damper
Final drive	spiral bevel gears, 2.54:1 ratio
Frame and Suspension.
Frame	cast aluminum front frame section
Front suspension	BMW Telelever with central spring strut and tilt isolation of the handlebars
Travel / dimensions	5.67 inches total travel
Rear suspension	Monolever with central strut
Travel / dimensions	3.94 inches total travel
Brakes
Brake system	Optional BMW / FAG anti-lock brake system ABS II
Front brakes	two 4-piston fixed calipers
Front rotors	dual 12.0 inch rotors
Actuation method	hydraulic, DOT 4 fluid type
Rear brake	one 2-piston caliper, floating mount
Rear rotor	single 11.2 inch diameter rotor
Actuation method	hydraulic, DOT 4 fluid type
Wheels and Tires
Wheels	cross-spoke wire wheels
Front tire	100/90-18
Rear tire	170/80-15
Dimensions
Overall length	(2340 mm)
Wheelbase	(1650 mm) (unladen)
Ground clearance	(150 mm) (unladen)
Seat height at curb weight	29.1
Curb weight, operational	686 lbs.
Maximum load	1,313 lbs. gross vehicle weight rating
