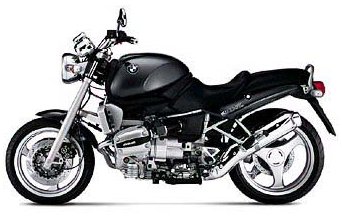

2001 BMW R 1100 R

The R1100R is a motorcycle you can trust right from the start. With a low seat height and low center of gravity, this motorcycle will always allow you to be in command.

Air / oil cooled, Boxer twin cylinder, 1085cc engine
Bosch Motronic MA 2.2 engine management
Electronic Fuel Injection
Three-way catalytic converter
High mounted stainless steel muffler
Shaft drive
Telelever front suspension
Paralever rear suspension
Adjustable seat height (three positions)
Adjustable front brake lever
Integrated ignition and steering lock
Single-key lock system for ignition, steering, fuel cap, seat storage compartment locks
Saddlebag mounting brackets
Hazard warning flashers
Power accessory socket
Center stand

$8,990

*Actual retail price determined by retailer. Price excludes taxes, license, options, and handling charges. Details and specifications are subject to change.

Engine
Type	Air cooled / Oil cooled twin cylinder, 4-stroke
Bore x stroke	99 mm x 70.5 mm
Displacement	1085 cc
Horsepower	80 bhp @ 6750 rpm
Torque	72 lb.-ft @ 5250 rpm
Compression ratio	10.3:1
Valve gear	HC, chain-driven
Valves	2x36 mm intake / 2x31 mm exhaust
Valve timing (measured at 3 mm valve clearance)	Intake opens 10 degrees after TDC Intake closes 36 degrees after BDC Exhaust opens 35 degrees before BDC Exhaust closes 3 degrees before TDC
Valves per cylinder	Four
Camshafts	300 degrees
Engine oil capacity	4 quarts of SF, SG motor oil, also w/CC or CD
Engine oil filter	Spin-on Micronic filter cartridge
Carburetion	Fuel injection and electronic ignition MA 2.2
Ignition	Controlled by Bosch Motronic
Fuel demand	Unleaded, middle-grade premium, 90 (AKI)
Fuel tank	Steel tank with enclosed fuel pump & filter
Fuel capacity	5.5 U.S. gallons including 1 gal. reserve
Air Filter	Paper-type element
Charging system	14 V, 50 Amp Alternator (700 W)
Battery	BMW Mareg, 19.5 Amp/h low maintenance
Cooling system	Combined air/oil cooled
Drivetrain
Primary drive	Helical-cut gears with tensioner
Clutch	180 mm dry, single plate with diaphram spring
Gear ratios	1 st gear: 4.16:1 2nd gear: 2.91:1 3rd gear: 2.13:1 4th gear: 1.74:1 5th gear: 1.45:1
Drive system	Enclosed driveshaft with two universal joints and integral torsional damper
Final drive	Spiral bevel gears, 3.0:1 ratio (33/11)
Frame and Suspension
Frame	New 3-section frame concept
Front suspension	Telelever with central spring strut. Linear-rate coil spring. Twin-tube gas-filled.
Travel / dimensions	4.72 inches total travel
Rear suspension	Patented BMW Paralever swingarm & shaft drive, single shock with variable rebound damping
Travel / dimensions	5.31 inches total travel, 7-position preload
Brakes
Brake system	Optional BMW / FAG anti-lock brake system ABS II
Front brakes	Two 4-piston calipers, wear compensation
Front rotors	Dual 12.0 inch floating rotors
Actuation method	Hydraulic, DOT 4 fluid type
Rear brake	One 4-piston caliper, floating mount
Rear rotor	Single 10.9 inch diameter fixed rotor
Actuation method	Hydraulic, DOT 4 fluid type
Wheels and Tires
Front wheel	3.50 x 17 MT-H2, cast alloy, 3-spoke U-profile
Rear wheel	4.50 x 18 MT-H2, cast alloy, 3-spoke U-profile
Front tire	120/'70 - ZR 17 tubeless
Rear tire	160/60 - ZR 18 tubeless
Dimensions
Overall length	85.68 inches (2197 mm)
Overall width	35.02 inches (898 mm) (over mirrors)
Wheelbase	57.99 inches (1487 mm) (unladen)
Ground clearance	5.38 inches (1 38 mm) (unladen)
Seat height	29.9 / 30.7 / 31.5 inches (760 / 780 / 800 mm)
Handlebar width	29.68 inches (761 mm)(with weights)
Steering angle	64 degrees
Front wheel trail	4.68 inches (120 mm) (unladen)
Weight - dry	482 lbs
Weight - wet	518 lbs
Maximum load	990 lbs. gross vehicle weight rating
Wheel load limits	Front = 396 lbs. Rear = 660 lbs.
Top Speed	121 mph (195 km/h)
