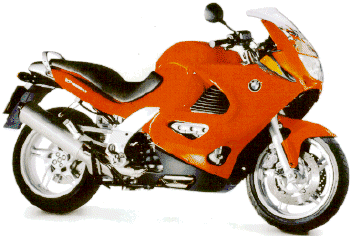

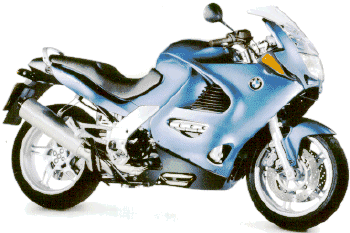

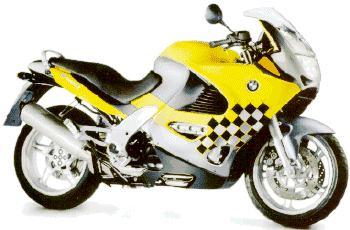

The new BMW K 1200 RS - facts and figures:
| Engine | BMW K 1200 RS |
| Type | 4-cylinder 4-stroke in-line engine |
| Valves | 4 per cylinder |
| Displacement | 1171 ccm |
| Bore x stroke | 70.5 mm x 75 mm |
| Horsepower rating | 96 DIN kW/130 hp @ 8,750 RPM |
| Torque rating | 117 Nm/86 ft. lbs. @ 6,750 RPM |
| Compression ratio | 11.5 : 1 |
| Cooling system | water |
| Valve actuation | DOHC, chain |
| Fuel induction | Bosch Motronic MA 2.4 with coasting cut-off |
| Catalytic converter | three-way computer-controlled dual converter with oxygen sensor |
| Clutch | single-plate, dry |
| Gearbox | 6-speed |
| Gear ratios | primary 1.889; 1 2.045; II 1.600; III 1.267; IV 1.038; V 0.900; VI 0.800 |
| Final drive ratio | 2.75 : 1 |
| Electrical / electronic system | |
| Engine management | central electronic blackbox with Motronic and automatic choke |
| Generator | three-phase alternator 12 V 60 A (720 W) |
| Battery | 12 V / 19 Ah |
| Headlamp | H7 tandem headlamp, FF reflector |
| Testing / diagnostics | mobile diagnostic computer - MoDiTeC |
| Dimensions and weights | |
| Fuel tank capacity | 21 L, incl. 4 L reserve [5.5 gal, incl. 1 gal reserve] |
| Seat height / curb weight | 770 mm and 800 mm [30.3 in. and 31.4 in] |
| Curb weight (operational) with full fuel tank | 285 kg [628 lbs.] |
| GVWR | 500 kg [1102 lbs.] |
| Performance | |
| Top speed | 245 km/h [152 mph] |
| Acceleration 0 - 100 km/h [O - 62 mph] |
3.7 seconds |
| Fuel consumption | |
| constant 90 km/h | 4.9 L[48.0 mpg] |
| constant 120 km/h | 5.8 L[40.5 mpg] |
| Fuel requirements | premium gasoline, unleaded |
| Chassis | |
| Frame | cast aluminum frame, engine with vibration isolation |
| Front wheel suspension | BMW Telelever with leading link supported centrally in the frame |
| Rear wheel suspension | BMW Paralever with new swingarm and kinematic progression |
| Final drive | shaft drive |
| Front suspension strut | gas shock absorber |
| Rear suspension strut | gas shock absorber with adjustable rebound and mechanical spring preload adjustment |
| Front wheel brake | 4-piston, fixed caliper with floating disks |
| Rear wheel brake | 2-piston fixed caliper with rigid disk |
| Wheels | alloy wheels with 5 double spoke design |
| Tires | |
| Front | 120/70 - ZR 17 (tubeless) |
| Rear | 170/60 - ZR 17 (tubeless) |
Subject to technical changes without notice
