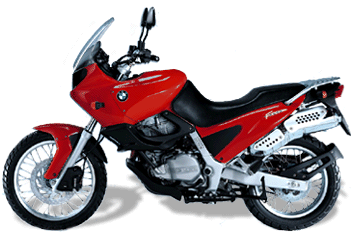

F 650
|
|
|
|
|
F 650 |
 |
The F 650 can be as unruly as it is civil. It behaves like a perfect gentleman on the pavement, but it feels more at home kicking things up. Dust, dirt, gravel, whatever. Consider its 652cc twin cam single. Long-travel front suspension. And a dual disc, four-piston brake in the front, teamed with a single disc, dual-piston disc in the rear. One bike, two personalities. Double your pleasure, double your fun.
2000 Model Information
| Colors |
# 695 Flame Red
# 715 Deep Black
# 749 Blue Metallic
#760 Silver Metallic
| Standard Equipment |
Water cooled, single cylinder, 4 stroke, 652cc engine
High mounted stainless steel exhaust with open-loop catalytic converter
Wire spoke wheels with tube-type tires
Braced handlebars
Pre-drilled handlebars for heated grip installation
Integrated ignition and steering lock
Analog clock
Center stand
| Optional Equipment |
Shop Online for Optional Equipment at BMWeStore.Com
| MSRP |
$7,900*
$8,200* - Special - includes Silver Metallic paint, heated grips, saddlebag
mounts, and luggage grid.
*Actual retail price determined by retailer. Price excludes taxes, license, options, and handling charges. MSRP includes equalized freight charges. Details and specifications are subject to change.
| Engine | |
| Type | Water-cooled single-cylinder 4-stroke |
| Bore x stroke | 100 mm x 83 mm |
| Displacement | 652 cc |
| Horsepower | 48 bhp @ 6,500 rpm |
| Torque | 41 lb.-ft. @ 5,200 rpm |
| Compression ratio | 9.7:1 |
| Valve Gear | DOHC, chain driven with bucket tappets |
| Valves | 36 mm intake / 31 mm exhaust |
| Valve Timing (measured at 3 mm valve clearance) |
Intake opens 17 degrees before TDC Intake closes 45 degrees after BDC Exhaust opens 47 degrees before BDC Exhaust closes 15 degrees after TDC |
| Valves per cylinder | Four |
| Camshafts | Double overhead |
| Engine oil capacity | 2.2 quarts of SF, SG or SH motor oil, also w/CC or CD |
| Engine oil filter | Micronic paper element |
| Carburetion | 2-type BST 33 B316 constant depression carburetors |
| Ignition | Capacitor Discharge Ignition system |
| Fuel demand | Unleaded, premium grade, 92 (AKI) |
| Fuel tank | Plastic tank with manual fuel shut-off valve |
| Fuel capacity | 4.6 U.S. gallons including 1/2 gal. reserve |
| Air filter | Foam-type element |
| Charging system | 14 V, 20 Amp Alternator (280 W) |
| Battery | 12V 12 Amp/h |
| Cooling system | Water cooled |
| Drivetrain | |
| Primary drive | Straight-cut gear 37 / 72 = 1:1.946 |
| Clutch | Multi-plate in oil bath |
| Gear ratios | 1st gear: 2.75:1 2nd gear: 1.75.1 3rd gear: 1.31:1 4th gear: 1.05.1 5th gear: 0.88:1 |
| Drive system | Endless O-ring roller chain drive 5/8 x 1/4" 16 /47 (sprocket / chainwheel) =1:2.937 |
| Final drive | 2.937:1 |
| Frame and Suspension | |
| Frame | Single-loop cradle, square-section steel tube w/bolt-on lower sections;upper frame section acts as oil tank |
| Front suspension | 41 mm telescopic fork with stabilizer bridge |
| Travel / dimensions | 6.69 inches total travel |
| Rear suspension | Central spring strut actuated by lever-linkage. Basic spring setting and rebound stage damping continuously adjustable |
| Travel / dimensions | 6.49 inches total travel, 40 stage adjustable spring pre-load |
| Brakes | |
| Brake system | Hydraulically operated single disc brake |
| Front brakes | One 4-piston caliper, floating mount, w/wear compensation |
| Front rotors | Single 11.8 inch fixed rotor |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Rear brake | One 2-piston caliper, floating mount |
| Rear rotor | Single 9.45 inch diameter fixed rotor |
| Actuation method | Hydraulic, DOT 4 fluid type |
| Wheels and Tires | |
| Front wheel | 2.15 x 19 MT, wire spoked wheel with tubed tires |
| Rear wheel | 3.00 x 17 MT, wire spoked wheel with tubed tires |
| Front tire | 100/90 x 19 57 tube type |
| Rear tire | 130/80 x 17 65 tube type |
| Dimensions | |
| Overall length | 85.8 inches (2180 mm) |
| Overall width | 34.7 inches (880 mm) (over mirrors) |
| Wheelbase | 58.3 inches (1480 mm) (unladen) |
| Ground clearance | 8.27 inches (210 mm) (unladen) |
| Seat height | 31.5 inches (800 mm) |
| Handlebar width | 31.5 inches (800 mm) (without weights) |
| Steering angle | 62 degrees |
| Front wheel trail | 4.56 inches (116 mm) (laden) |
| Weight-dry | 389 lbs. (176 kg) |
| Weight-wet | 421 lbs. (191 kg) |
| Maximum load | 818 lbs. (421 kg) gross vehicle weight rating |
| Wheel load limits | Front = 298 lbs. (135 kg) Rear = 573 lbs. (260 kg) |
| Top Speed | 101 mph (163 km/h) |
Copyright 2000 BMW of North America, Inc. All rights reserved.
